Data Lake Service (DLS)

This section provides guidance on defining and managing the settings for a source file, ensuring accurate and efficient data transfer from the landing zone to the database.

What you will learn about here:

Sources UI Configuration: A guide to configuring a source file via the Config UI. This includes defining the file structure (the data contract) and the settings that control how each delivery is archived and published.

Configuring the Sourcefile via UI​

The DLS → Sources page (/sourcefiles) defines and manages the settings for a source file: how an incoming delivery is interpreted, where it is archived, and how it is published to the trusted zone.

A Sources Guide button at the top of the page expands a short in-app summary of the same material.

Selecting a system and a source

    Pick the system from the searchable dropdown, then the source within it. Add new system and Add new source create new entries.

    Changes are held in a working copy until you press Save changes. The button states No changes to save while the form is clean, an Unsaved changes marker appears once you edit something, and the browser warns before you close the tab with unsaved work.

    The action bar also carries Show JSON (the exact definition, with a download button), Schema Diagram (a visual view of the file structure) and Deactivate this source.

Adding a new source file

    Add new source opens a dialog asking for the source file name, the file type, an optional file name pattern (leave empty to reuse the source file name) and an optional description.

    A source file can also be created straight from an export: after saving an export definition on the INGEST → Exports page, the UI offers to create the matching source file with the name, file type and file name pattern already filled in.

The two tabs

    Sourcefile Structure defines the hierarchical structure of the file and the relationships between its fields — the data contract that downstream processes and profiling validate against.

    Sourcefile Properties holds the metadata and the archiving and publishing settings described below.

Sourcefile properties

    Enable data profiling (enableProfiler): Enables continuous checks and validation of incoming data against the data contract. It is recommended to keep this enabled, but it increases stored volume and uses compute, so it can be disabled if necessary.

    Source description (description): Free text explaining the purpose and contents of the source file, up to 255 characters. The editor shows the character count.

    Source details​

    File type (fileType): How to interpret the source data. Available options:

    • CSV — column-delimited text data.
    • JSON — JSON-formatted text data.
    • XML — XML-formatted text data.

    Filename pattern (filenamePattern): The unique representation of the source file data, used to identify all deliveries. Several different exports can be written into a single source file by sharing a pattern.

    File encoding (fileEncoding): The character encoding used to read the delivered files. The list is served from platform settings; the defaults are utf-8 (supports all Unicode characters), utf-16, and windows-1252 (Western European, compatible with older Windows applications).

    Landing zone path (landingZonePath): Traces the source file to a specific upload folder. Useful when several sources deliver data with similar or matching filename patterns, or when different credentials are used for the upload/landing bucket.

    Expected amount of files per 24 hours (expectedAmount): The expected number of deliveries per 24 hours, used as a benchmark for whether a delivery is complete. The default is -1, meaning no expectation; otherwise a positive integer.

    Archiving details​

    Raw zone path (rawZonePath): Where archived raw data is stored. Defaults to /<system>/<source>/[YYYY]/[MM]/[DD]/ when left empty. Dynamic formatting is applied from the delivery date: [YYYY] four-digit year, [YY] two-digit year, [MM] month, [DD] day, [HH] hour. These are UTC.

    File compression type (fileCompressionType): gzip or none. Tells DLS whether to archive and process data compressed. New sources default to gzip.

    File compression level (fileCompressionLevel): Shown when the type is gzip. 1 to 9, where 9 is the highest compression.

    Publishing details​

    Target format (targetFormat): The format used when publishing data to the trusted zone. Regardless of the original fileType, the data is converted to:

    • TABLE — the client database's native table format.
    • ICEBERG — Iceberg table format.
    • JSON — line-delimited JSON.

    Trusted zone path (trustedZonePath): Where published trusted data is stored. Defaults to /<system>/<source>/ when left empty. The same dynamic date formatting as the raw zone path applies.

    Target method (targetMethod): How new data is written to the trusted zone path:

    • APPEND — appends changes and new records to the target table. The method does not compare incoming data to existing records, so duplicate change records may occur.
    • OVERWRITE — incoming data overwrites the existing data.
    • TRANSACTION — appends all incoming data to the target table without any controls.
    • CHANGES ONLY — appends changes and new records, comparing incoming data to the latest known change in the target table so no duplicate change records are added.
    • LATEST VERSION — applies changes and new records while preserving only one version per primary key.

    Target table normalization (targetNormalization): How the source structure is normalized into target tables:

    • NONE — the structure is published as it stands.
    • LISTS — repeating lists are broken out into their own tables.
    • LISTS AND OBJECTS — lists and nested objects are both broken out.

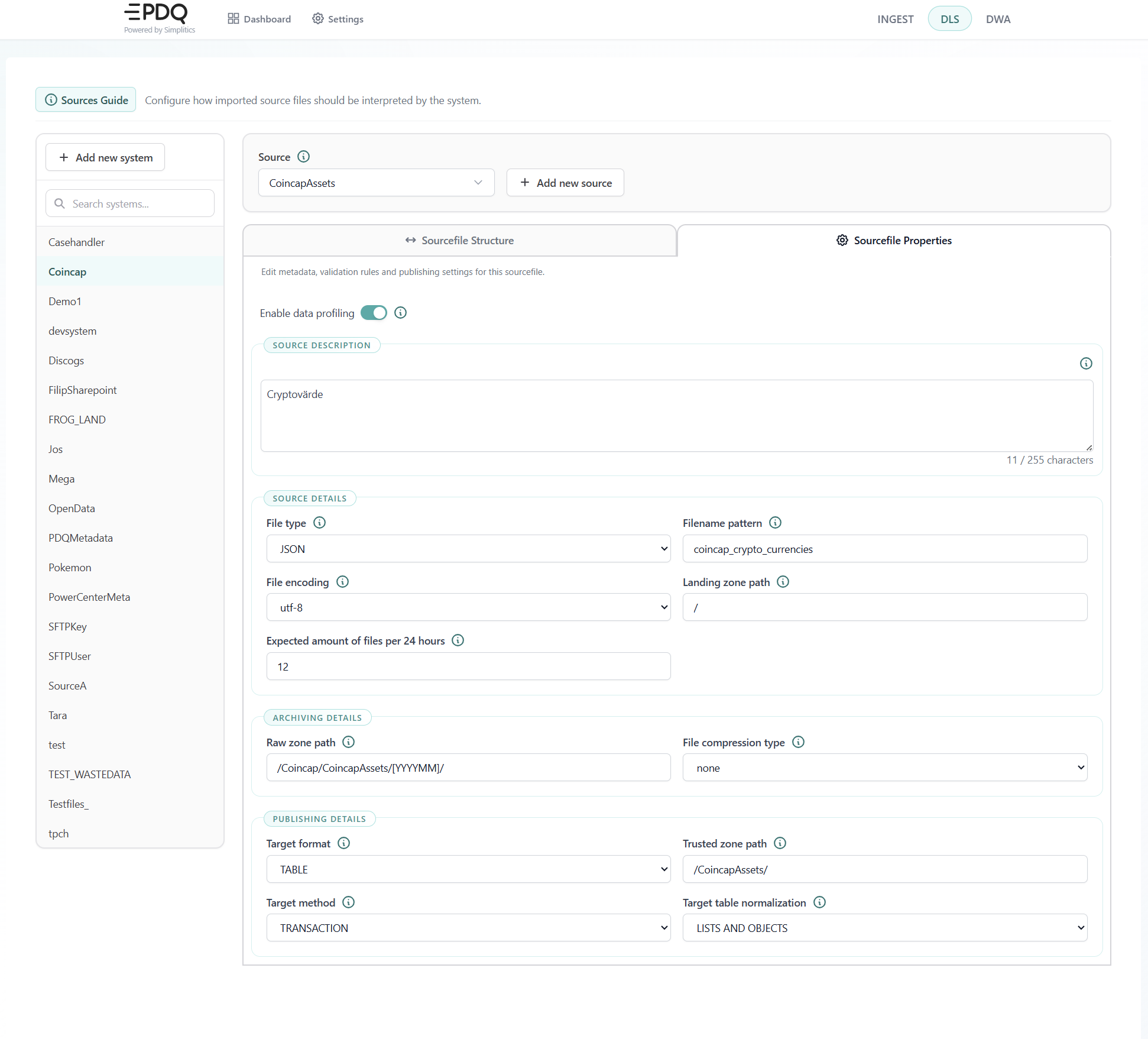

    DLS sourcefile properties: data profiling toggle, source description, source details, archiving details and publishing details

Sourcefile Structure

    The Sourcefile Structure tab holds the data contract itself: the hierarchical structure of the source file and the properties of every field. Turn on Editable mode to change it.

    Each field carries:

    • Alias (fieldAlias): the name used for the field downstream, when the source name is not the name you want in the target tables.
    • Description: free text carried into the generated documentation — and into the COMMENT on the target column.
    • Data type: the declared type, for example VARCHAR(255) or Timestamp.
    • Key order: the position of the field within the key. 0 means the field is not part of the key.
    • Field order: the position of the field in the target table.
    • Field categorization: the business category the field belongs to.
    • Flags & governance: per-field toggles controlling inclusion, exclusion, key membership and protection.

    Use the filters above the list to show key fields only, hide excluded fields, or narrow the list by data type.

    What you set here travels to the target. The data contract is not documentation about the pipeline — it is the input the generator uses to build the tables. The description becomes a column comment, the key order becomes a primary key on the publish table and a unique constraint on the core table, the field categorization becomes a category tag on the target column, and a field flagged sensitive gets a sensitivity tag and, on platforms that support it, a column mask. On a hierarchical source, the classification of a business key follows that key onto every normalised child table that inherits it. See What lands in the target environment.

    Note that fieldKey and path are case sensitive and must match the source files exactly.

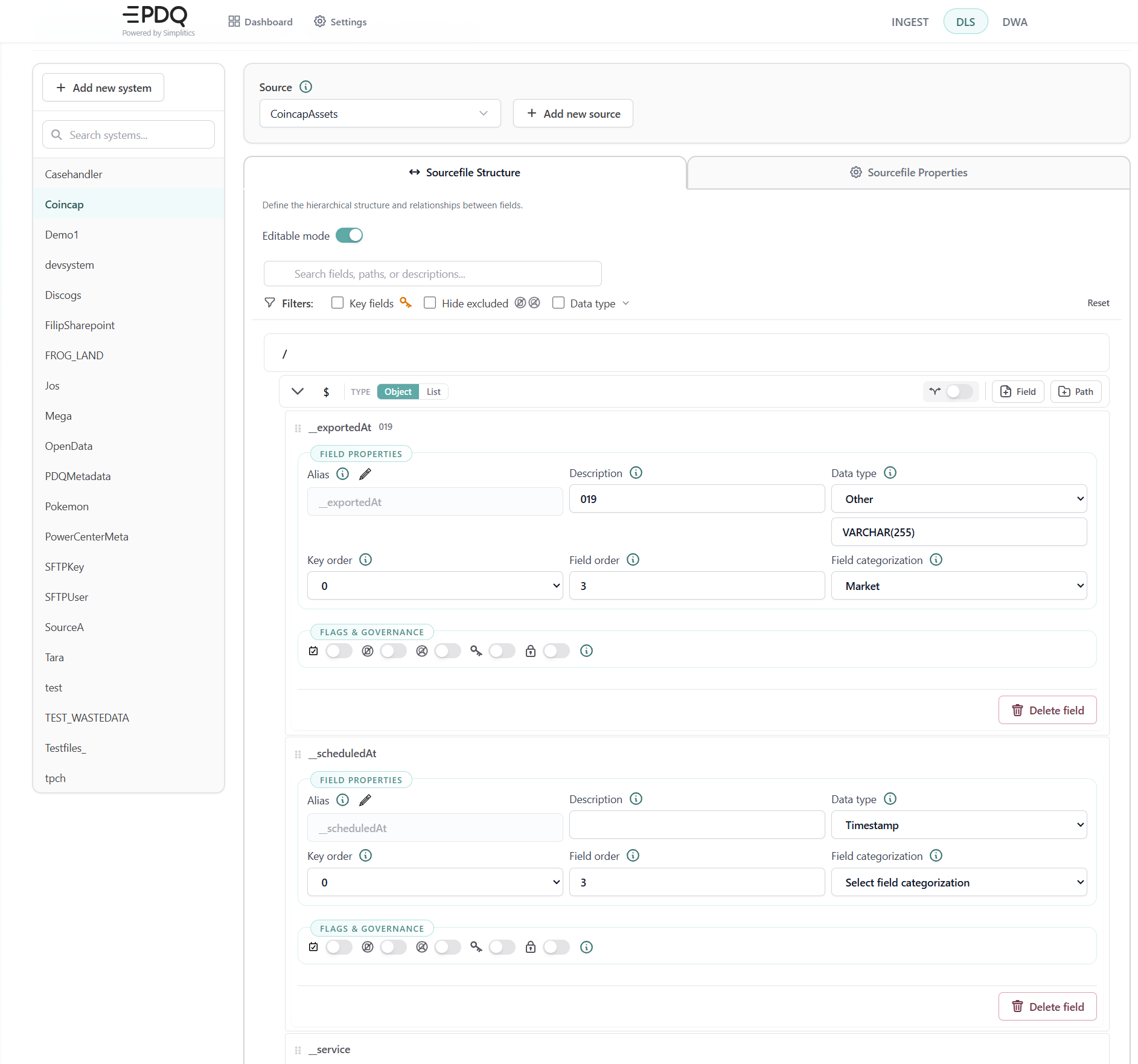

    DLS sourcefile structure: hierarchical field list with field properties and governance flags
